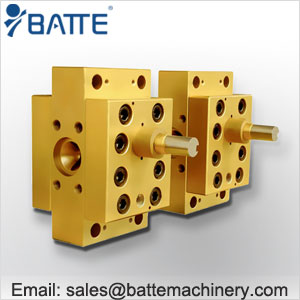

ZB-H high temperature & high pressure extruder pump

ZB-H high temperature & high pressure extruder pump applications:

batte melt pump case picture



ZB-H high temperature & high pressure extruder pump is applicable for engineering plastic or blown film technique. This series of high temperature melt pump is suitable for high temperature and high pressure conditions, and used for transportation, pressurization or the metering of the high temperature and high viscosity polymer melt.

High pressure extruder pump have a unique positive displacement design which provides consistent, accurate polymer delivery under varying extruder output conditions of pressure, temperature and viscosity. With melt pump providing the pressure between the extruder and the die, extruder parameters can be configured to provide a homogeneous melt at increased throughout and tighter gauge tolerances.


high pressure extruder pump      high temperature melt pump


Application of High temperature melt pump:
◆Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;
◆High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;
◆Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;
◆Polyester for cotton-fiber, polypropylene and other chemical fiber melt.

Technical Parameter of High pressure extruder pump:
◆ Material for Gear Pumps Body: CPM Tool Steel or Titanium Tantalum Alloy
◆ Material for Gear: CPM tool steel, titanium tantalum alloy, special materials or abrasion resistant coating
◆ Material for Sliding Bearing: CPM tool steel, titanium tantalum alloy, special materials or abrasion resistant coating
◆ Shaft Sealing: Spiral Sealing
◆ Heating System: Electrical Heating

Batte melt pump chinaplas:

batte extrusion melt pump chinaplas



Operating Parameter of High temperature melt pump:
◆Theory: Positive Displacement Gear Pump
◆Structure: Gear Pump
◆Usage: Plastic, Rubber Pump and Fiber
◆Power: Electric or Oil
◆Fuel: No Need
◆Volume Range: 5CC - 3200CC
◆Viscosity: ≤20000 Pas
◆Working Temperature: ≤510°C(950°F)
◆Cleaning Temperature: ≤590°C(1100°F)
◆Inlet Pressure: ≤20MPa
◆Outlet Pressure:≤70Mpa
◆Differential Pressure: ≤50Mpa
◆ Model/Flow Range: 5CC - 2500CC, 5cm3/rev - 2500cm3/rev

Pump Model
Pump Volume (CC)
Capacity (L/H)
Driven Power (kw)
Heating Power (kw)
Working Temperature
Working Pressure
ZB-0.1
0.1
0.05-0.2
0.2
1







≤400℃(750°F)




Outlet Pressure:  ≤ 350Mpa

Outlet Differential Pressure: ≤ 275bar

ZB-0.5
0.5
0.25-1
0.37
1
ZB-1
1
0.5-2
0.55
1
ZB-2
2
1-4
0.75
1
ZB-5
5
2.5-10
1.1
2
ZB-10
10
5-20
1.5
2
ZB-20
20
10-40
2.2
2
ZB-31.5
32
16-60
3
2
ZB-50
50
25-100
4
3
ZB-100
100
50-200
5.5
4
ZB-150
150
75-300
7.5
5
ZB-90/90
200
100-400
11
6
ZB-100/100
250
125-500
15
8
ZB-100/100
315
150-300
18.5
8
ZB-115/115
500
200-1000
22
12
ZB-130/130
800
400-1600
30
15
ZB-160/160
1200
600-2400
37
20
ZB-180/160
2500
1250-5000
55
20
ZB-180/180
3200
1600-6400
55
24
ZB-224/224
6000
3000-6000
75
30

batte machinery zhengzhou CO., LTD:

batte melt pump factory

Batte Melt Pump Zhengzhou Co., Ltd. is one of the manufacturers of melt pumps, gear pumps, metering pump and loss-in-weight feeders, volumetric feeders,screen changer in China. Batte has many experienced and outstanding plastic machinery talents, so it can continuously develop the new products by self-innovation or by introduction and absorbing new technology, meanwhile Batte also improves constantly the design of products and production technology service.Our pumps are widely used in plastic, resin, plate, sheet and rubber extrusion. For example, plastic extrusion machinery for PA, PP, PS, PE, PET, PC, ABS and so on is all using melt pumps to eliminate extruders' surge and screws' beat.
