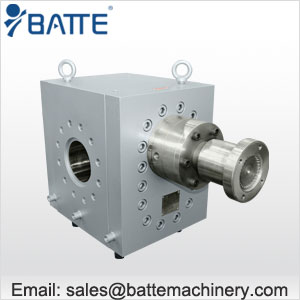

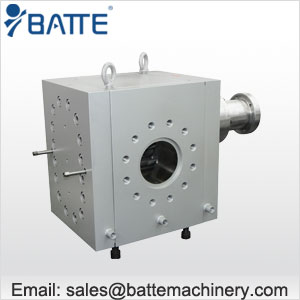

ZB-D gear pumps for pipeline
ZB-D gear pumps for pipeline applications:
ZB-D series pipeline melt pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of gear melt pump adopts conduction oil heating, and applies to PET, PBT, PA, PC, PS, SAN, ABS, HIPS, PP, PE, POM, etc.
Technical parameter of gear pump for pipeline:
◆Material for Melt Pump Body: High temperature tool steel, chromenickel steel or stainless steel
◆Material for Gear: M2 Steel (Optional), stainless steel
◆Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel
◆Gear Tooth Type: straight gear, helical gear, herringbone gear
◆Shaft Sealing: Spiral sealing, packing sealing, spiral and packing sealing or other combined sealing
◆Heating System: Heating Medium or Conduction Oil Heating
◆Model/Volume Range: 0.5CC - 12000CC, 0.5cm3/rev - 12000cm3/rev
Batte melt pump chinaplas:
Operating Parameter of Pipeline melt pump:
◆ Inlet Pressure: ≤12MPa
◆ Viscosity: ≤40000 Pa.s
◆ Working Temperature: ≤400°C (750°F)
◆ Cleaning Temperature: ≤450°C (850°F)
◆ Outlet Pressure: 40MPa(6000psi)
◆Differential Pressure: ≤25MPa
|
Type
|
CC/Rev
|
Capacity (L/H)
|
Heating power (kw)
|
Driven system (km)
|
Pressure
|
Temperature
|
|
ZB-0.2
|
0.2
|
0.2-0.6
|
0.5
|
0.37
|
Inlet pressure: ≥0Mpa
Exit pressure:
≤35Mpa
|
Operating temperature:≤350℃
Clearing temperature:≤450℃
|
|
ZB-1
|
1
|
1-3
|
1
|
0.5
|
||
|
ZB-2
|
2
|
2-6
|
1
|
0.75
|
||
|
ZB-5
|
5
|
5-15
|
1
|
1.1
|
||
|
ZB-10
|
10
|
10-30
|
1
|
1.5
|
||
|
ZB-20
|
20
|
20-60
|
2
|
2.2
|
||
|
ZB-31.5
|
31.5
|
30-90
|
2
|
3
|
||
|
ZB-50
|
50
|
50-150
|
2
|
4
|
||
|
ZB-100
|
100
|
100-300
|
3
|
5.5
|
||
|
ZB-150
|
150
|
150-450
|
4
|
7.5
|
||
|
ZB-200
|
200
|
200-600
|
4
|
11
|
||
|
ZB-250
|
250
|
250-750
|
5
|
15
|
||
|
ZB-315
|
315
|
300-900
|
6
|
18.5
|
||
|
ZB-400
|
400
|
400-1200
|
8
|
22
|
||
|
ZB-500
|
500
|
500-1500
|
10
|
30
|
||
|
ZB-630
|
630
|
600-1800
|
12
|
37
|
||
|
ZB-800
|
800
|
800-2400
|
15
|
45
|
||
|
ZB-1000
|
1000
|
1000-3000
|
18
|
55
|
||
|
ZB-1500
|
1500
|
1200-4500
|
20
|
75
|
Features of gear pumps for pipeline:
◆ Stable output pressure
◆ Improve the quality of products
◆ Improve the productivity of extrusion
◆ Reduce unit energy consumption
◆ Extend the service life of the whole machine
batte machinery zhengzhou CO., LTD:
Batte Melt Pump Zhengzhou Co., Ltd. is one of the manufacturers of melt pumps, gear pumps, metering pump and loss-in-weight feeders, volumetric feeders,screen changer in China. Batte has many experienced and outstanding plastic machinery talents, so it can continuously develop the new products by self-innovation or by introduction and absorbing new technology, meanwhile Batte also improves constantly the design of products and production technology service.Our pumps are widely used in plastic, resin, plate, sheet and rubber extrusion. For example, plastic extrusion machinery for PA, PP, PS, PE, PET, PC, ABS and so on is all using melt pumps to eliminate extruders' surge and screws' beat.
