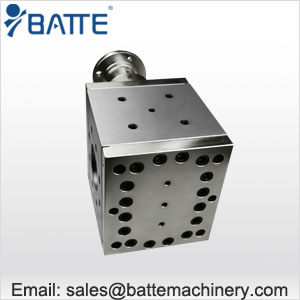

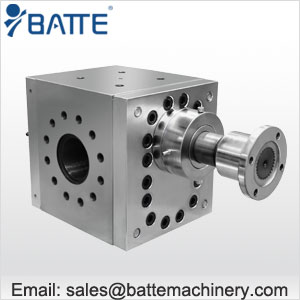

ZB-B standard extrusion melt pump
ZB-B Series Standard Extrusion Melt Pump:
ZB-B series standard melt pumps are mainly used for extruder or pressurization, stabilizing flow and transportation of medium or high viscosity polymer. This series of extrusion melt pump adopts electrical heating, and applies to PS, PP, PET, PVC, PC, PMMA, PA, ABS, PE-LLD, etc.
Technical Parameter of ZB-B standard extrusion melt pump:
◆Material for Melt Pump Body: High temperature tool steel or chrome-nickel steel
◆Material for Gear: High temperature tool steel or nitrided steel
◆Material for Sliding Bearing: High temperature tool steel
◆Shaft Sealing: Spiral sealing or packing sealing spiral and packing sealing or other combined sealing;
◆Heating System: Electrical rod heating
◆Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
Batte melt pump chinaplas:
Operating Parameter of standard melt pumps:
◆Theory: Positive Displacement Gear Pump
◆Structure: Gear Pump
◆Usage: Plastic, Rubber Pump and Fiber
◆Power: Electric or Oil
◆Fuel: No Need
◆Pressure: High Pressure
◆Volume Range: 0.5CC - 3200CC
◆Viscosity: ≤40000 Pa.s
◆Working Temperature: ≤400°C (750°F)
◆Cleaning Temperature: ≤450°C (850°F)
◆Outlet Pressure: 40MPa(6000psi)
◆Differential Pressure: ≤25Mpa
Application of Batte melt pumps:
◆Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;
◆High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;
◆Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;
◆Polyester for cotton-fiber, polypropylene and other chemical fiber melt.

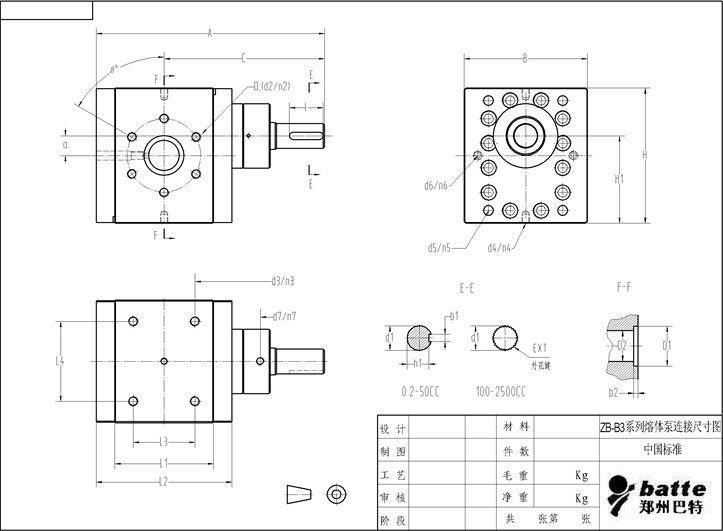

Specifications and Drawing of ZB-B standard extrusion melt pump:
|
Type
|
CC/Rev
|
Capacity (L/H)
|
Heating power (kw)
|
Driven system (km)
|
|
ZB-0.2
|
0.2
|
0.1-0.6
|
0.5
|
0.37
|
|
ZB-1
|
1
|
0.5-3
|
1
|
0.5
|
|
ZB-2
|
2
|
1-6
|
1
|
0.75
|
|
ZB-5
|
5
|
2.5-15
|
1
|
1.1
|
|
ZB-10
|
10
|
5-30
|
1
|
1.5
|
|
ZB-20
|
20
|
10-60
|
2
|
2.2
|
|
ZB-31.5
|
31.5
|
15-90
|
2
|
3
|
|
ZB-50
|
50
|
25-150
|
3
|
4
|
|
ZB-100
|
100
|
50-300
|
4
|
5.5
|
|
ZB-150
|
150
|
75-450
|
5
|
7.5
|
|
ZB-200
|
200
|
100-600
|
6
|
11
|
|
ZB-250
|
250
|
125-750
|
8
|
15
|
|
ZB-315
|
315
|
150-900
|
8
|
18.5
|
|
ZB-500
|
500
|
250-1500
|
12
|
22
|
|
ZB-800
|
800
|
400-2400
|
15
|
30
|
|
ZB-1200
|
1200
|
600-3600
|
20
|
37
|
|
ZB-2500
|
2500
|
1300-7500
|
24
|
45
|
|
ZB-3200
|
3200
|
1600-9600
|
24
|
55
|
|
ZB-6200
|
6200
|
3000-18000
|
30
|
75
|
batte machinery zhengzhou CO., LTD:
Batte Melt Pump Zhengzhou Co., Ltd. is one of the manufacturers of melt pumps, gear pumps, metering pump and loss-in-weight feeders, volumetric feeders,screen changer in China. Batte has many experienced and outstanding plastic machinery talents, so it can continuously develop the new products by self-innovation or by introduction and absorbing new technology, meanwhile Batte also improves constantly the design of products and production technology service.Our pumps are widely used in plastic, resin, plate, sheet and rubber extrusion. For example, plastic extrusion machinery for PA, PP, PS, PE, PET, PC, ABS and so on is all using melt pumps to eliminate extruders' surge and screws' beat.
