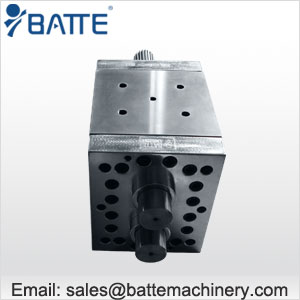

RS double shaft rubber gear pump

RS series double shaft rubber gear pump applications:

batte melt pump case picture


RS series double shaft rubber gear pump can effectively improve the power, stabilize output, and reduce gear wear down. Melt pumps for rubber is the expanded version of ZB-R rubber pump, and mainly used for extruder to pressurize, stabilize flow of medium or high viscosity polymer melt. This series melt pump adopts electrical heating system, and applies to butadiene rubber, chloroprene rubber, EPDM, SBR, NBR, natural rubber, PS, PP, PET, PVC, PC, PMMA, PA, ABS, PE-LLD, etc.

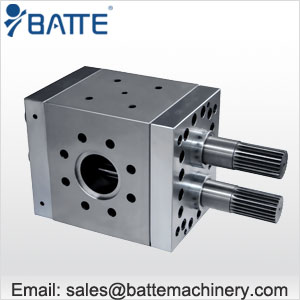

double shaft melt pumps for rubber      melt pumps for rubber

Operating Parameter of RS melt pumps for rubber:
◆ Viscosity: ≤40000 Pa.s
◆ Working Temperature: ≤400℃ (750℉)
◆ Cleaning Temperature:≤450℃ (850℉)
◆ Inlet Pressure: ≤10MPa
◆ Outlet Pressure: ≤40MPa (6,000psi)
◆ Differential Pressure: ≤25MPa

Batte melt pump chinaplas:

batte extrusion melt pump chinaplas

Technical Parameter of RS double shaft rubber gear pump:
◆ Pressure: high pressure
◆ Theory: positive displacement gear pump
◆ Material for Melt Pump Body: High temperature tool steel or chromenickle steel
◆ Material for Gear: High temperature tool steel or nitrided steel
◆ Material for Sliding Bearing: High temperature tool steel, special materials or coating
◆ Shaft Sealing: Spiral Discharging, packing
◆ Heating System: electrical heating
◆ Cooling System: Shaft end cooling
◆ Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev

batte machinery zhengzhou CO., LTD:

batte melt pump factory

Batte Melt Pump Zhengzhou Co., Ltd. is one of the manufacturers of melt pumps, gear pumps, metering pump and loss-in-weight feeders, volumetric feeders,screen changer in China. Batte has many experienced and outstanding plastic machinery talents, so it can continuously develop the new products by self-innovation or by introduction and absorbing new technology, meanwhile Batte also improves constantly the design of products and production technology service.Our pumps are widely used in plastic, resin, plate, sheet and rubber extrusion. For example, plastic extrusion machinery for PA, PP, PS, PE, PET, PC, ABS and so on is all using melt pumps to eliminate extruders' surge and screws' beat.

pre:ZB-U spinning pump
next:ZB-X gear metering chemical pump
