ZB-K polymer discharge gear pump

ZB-K polymer discharge gear pump introduction:
ZB-F series melt pump is mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle. On basis of large suction inlet flange design, the high viscosity medium is able to absorb inside under vacuum conditions. This series of extrusion discharge pump for reactor is primarily applicable for ABS, PS, PC, PET, SAN, PP, PE Biopolymers, etc.

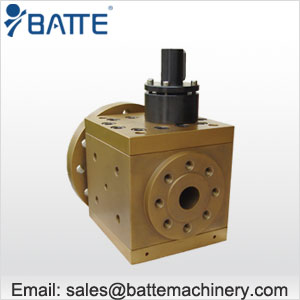

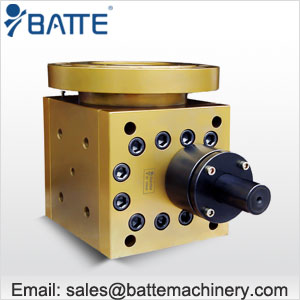

polymer discharge gear pump       polymer discharge gear pump


Technical Parameter of Polymer discharge gear pump:
◆ Material for Melt Pumps Body: stainless steel, carbon steel, hatelloy, monel metal
◆ Material for Gear: M2 Steel (Optional), tool steel, nitrided steel, special materials or coating
◆ Gear Tooth Type: straight gear, helical gear, herringbone gear
◆ Material for Sliding Bearing: Tool steel, titanium tantalum alloy, silver nickel, special materials or abrasion-resistant coating
◆ Shaft Sealing: Mechanical sealing, packing and spiral packing, combined
◆ Heating System: Electrical heating

Batte melt pump chinaplas:

batte extrusion melt pump chinaplas


Operating Parameter of extrusion discharge pump for reactor:

◆ Theory: Positive Displacement Gear Pump
◆ Structure: Gear Pump
◆ Usage: Plastic, Rubber Pump and Fiber
◆ Power: Electric or Oil
◆ Fuel: No Need
◆ Volume Range: 0.5CC - 12000CC
◆ Viscosity: ≤40000 Pa.s
◆ Working Temperature: ≤400°C(750°F)
◆ Cleaning Temperature: ≤450°C(850°F)
◆ Inlet Pressure: Vacuum--1.5MPa
◆ Outlet Pressure: vacuum – 1.5MPa
◆ Model/Flow Range: 0.5CC - 12000CC, 0.5cm3/rev - 12000cm3/rev
◆ Differential Pressure: 40Mpa

Pump Model
Pump Volume (CC)
Driven Power (kw)
Heating Power (kw)
Working Temperature
Working Pressure
ZB-0.6
0.6
0.37
0.5







≤400℃(750°F)




Outlet Pressure:  ≤ 40Mpa(6,000psi)

Outlet Differential Pressure: ≤ 275Mpa

ZB-1.2
1.2
0.75
0.5
ZB-2
2
0.75
1
ZB-5
5
1.1
2
ZB-10
10
1.5
2
ZB-20
20
2.2
2
ZB-31.5
32
3
2
ZB-50
50
4
3
ZB-100
100
5.5
4
ZB-150
150
7.5
5
ZB-90/90
200
11
6
ZB-100/100
250
15
8
ZB-100/100
315
18.5
8
ZB-115/115
500
22
12
ZB-130/130
800
30
15
ZB-160/160
1200
37
20
ZB-180/160
2500
45
24
ZB-180/180
3200
55
24
ZB-224/224
6000
75
30



ZB-K polymer discharge extrusion melt pump for reactor



ZB-K polymer discharge gear pump application:

batte melt pump case picture



◆ Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;
◆ High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;
◆ Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;
◆ Polyester for cotton-fiber, polypropylene and other chemical fiber melt.

batte machinery zhengzhou CO., LTD:

batte melt pump factory

Batte Melt Pump Zhengzhou Co., Ltd. is one of the manufacturers of melt pumps, gear pumps, metering pump and loss-in-weight feeders, volumetric feeders,screen changer in China. Batte has many experienced and outstanding plastic machinery talents, so it can continuously develop the new products by self-innovation or by introduction and absorbing new technology, meanwhile Batte also improves constantly the design of products and production technology service.Our pumps are widely used in plastic, resin, plate, sheet and rubber extrusion. For example, plastic extrusion machinery for PA, PP, PS, PE, PET, PC, ABS and so on is all using melt pumps to eliminate extruders' surge and screws' beat.
